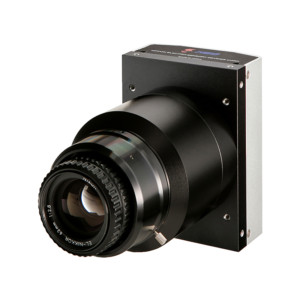

Main Data

Camera Link
6144 px
Line Rate
52.63 kHz
  • High speed readout(340MHz)
  • High resolution(6144 pixels)
  • Choice of 2tap or 4tap with 6144 pixels on data format
  • Choice of 8bit or 10bit on readout of all format
  • Choice of 40MHz, 60MHz or 85MHz on data output clock speed
  • Easy control of gain / offset with software outside the camera.
  • Easy connection with a variety of frame grabber boards via Camera Link interface
  • Single power source DC12V to 15 for operation
  • Flat-field correction – minimizes lens vignetting, non-uniform lighting and sensor FPN and PRNU

Model ordering number

No mount

Sensor data

6144 pixels
Pixel size W x H
7 x 7 µm
Sensor length
43.008 mm
Spectral responsivity
400-1000 (Peak: 625) nm
Data rate
340 | 240 | 160 | 170 | 120 | 80 (Selectable rate) MHz
Bit depth
8, 10
Clock speed
85×4 | 60×4 | 40×4 | 85×2 | 60×2 | 40×2 MHz
2, 4
Saturation exposure (lx・s)
0.071 [Minimum Gain, Pixel Correction Initial Value, Daylight Fluorescent Light]
Responsivity (V/ [lx・s])
100 (V/[lx・s]) Analog 5V Conversion Sensitivity Visible Area (400~700nm)
Gain adjustable range
Analog amplifier + digital
Analog Amplifier: x1~x10 (8 Steps)
Digital: x1~x2 (512 Steps)
Digital offset adjustable range (DN)
Digital: -127~127(0.5DN/Step: 8bit) -127~127(2.0DN/Step: 10bit)
FPN (Fixed Pattern Noise)
Typically 5 DN (without correction, at minimum gain) 2 DN (with correction, at minimum gain)
PRNU (Photo Response Non Uniformity)
Typically 20 DN (without correction, at minimum gain) 4DN (with correction, at minimum gain)
Random noise
Typically 20DN (peak value, at minimum gain)

Physical data

Size W x H x D
60 x 100 x 70 mm
Weight (body without mount)
380 g
Lens mount

Format & Connections

Video output format
Camera Link Medium Configuration (8or10bit/4tap) Camera Link Base Configuration (8or10bit/2tap)
Control input
CC1: External Trigger Signal, CC2-4: Not in use
Power supply:
3M: MDR26 [Camera Link] x 2
Hirose: HR10G (6Pin)

Power & Operation

Power supply voltage
DC12~15[±5%] V
Consumption current
250 mA
Operating temperature No condensation
0~50 ˚C
*¹ DN: Digital Number (10-bit: 0-1023)
*² Measurements were made at room temperature.
RMSL6K52CL F-mount
ModelProduct typeSeries nameModelFile typeFile typeFile formatLast revisionDownload
RMSL6K52CLLine scan cameraRyuganRMSL6K52CLTechnical drawing 2DTechnical drawing 2DDXF2D
RMSL6K52CLLine scan cameraRyuganRMSL6K52CLTechnical drawing 3DTechnical drawing 3DSTEP3D
RMSL6K52CLLine scan cameraRyuganRMSL6K52CLUser manualUser manualPDF2021/10/07User manual
RMSL6K52CLLine scan cameraRyuganRMSL6K52CLControl softwareControl softwareEXEControl software
