Sensor data
Resolution
4096 pixels
Chroma
Color
Pixel size W x H
7 x 7 µm
Sensor length
28.672 mm
Data rate
40 | 60 | 80 | 85 x 3 MHz
Bit depth
24 bit RGB, 30 bit RGB
Clock speed
40 | 60 | 80 | 85 MHz
Taps
1, 2
Responsivity (V/ [lx･s])
30
＊Gch Analog 5V conversion sensitivity
Gain adjustable range
Analog amplifier + digital
Analog: x1, x2, x4, x8 (4 Steps)
RGB Common: x1～x2 (512 Steps) RGB Common: x1～x3 (1023 Steps)
Digital offset adjustable range (DN)
Common: ±1600＠RGB12 /±400＠RGB10 /±100＠RGB8
Individual: ± 432＠RGB12 /±108＠RGB10 /± 27＠RGB8
Physical data

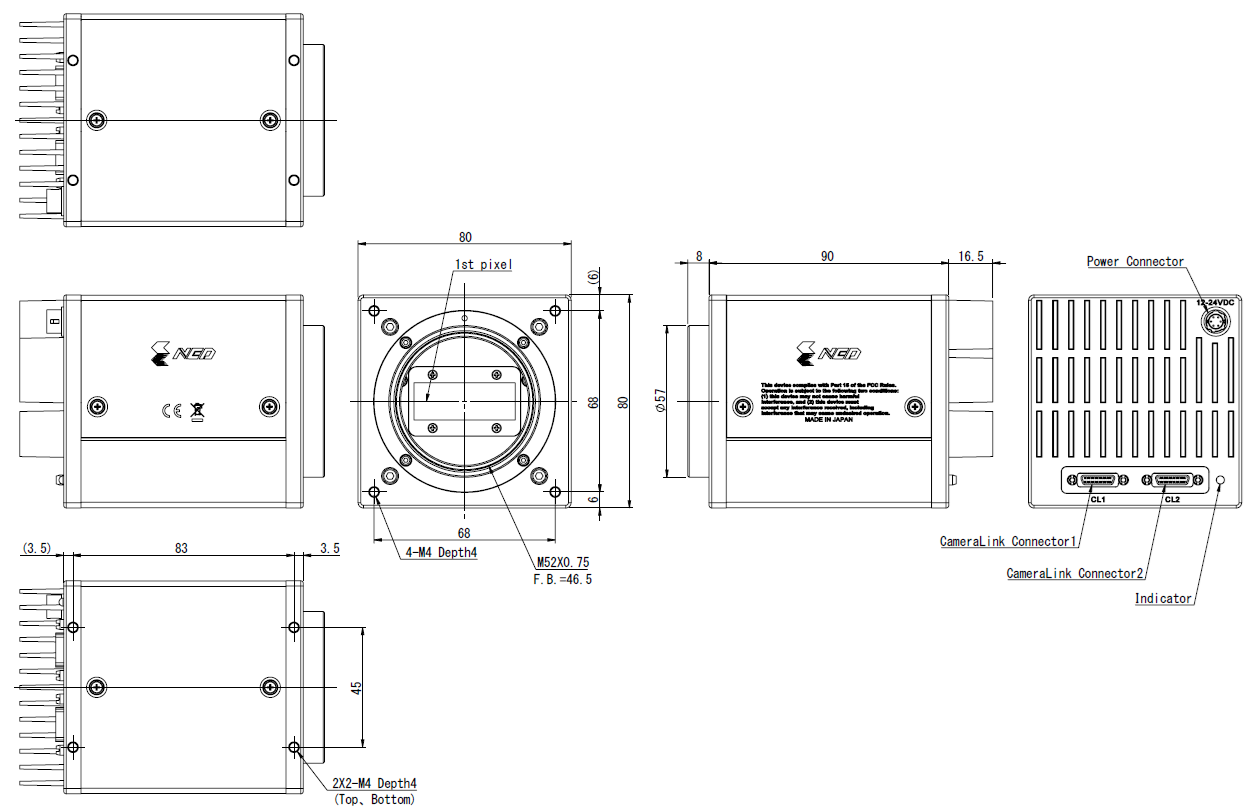

Size W x H x D
80ｘ80ｘ90 (M52-mount) mm
Weight (body without mount)
< 570 g
Lens mount
F
Format & Connections
Video output format
Camera Link
Medium / Base configuration
Control input
CC1: External trigger signal
CC2-4: Not in use
Connectors
Data/controller:
Power supply:
3M: SDR26[Mini Camera Link]ｘ2
Hirose: HR10G (6Pin)
Power & Operation
Power supply voltage
DC12 to 24[±5%] V
Consumption current
< 9.2＠DC12V mA
Operating temperature
No condensation
-5 to 45 ˚C
*¹ DN: Digital Number (10-bit: 0-1023)
*² Measurements were made at room temperature.
